Hyundai Equus: Components and Components Location - Lane Departure Warning System (LDWS) - Body Electrical System - Hyundai Equus VI 2009-2025 Service ManualHyundai Equus: Components and Components Location

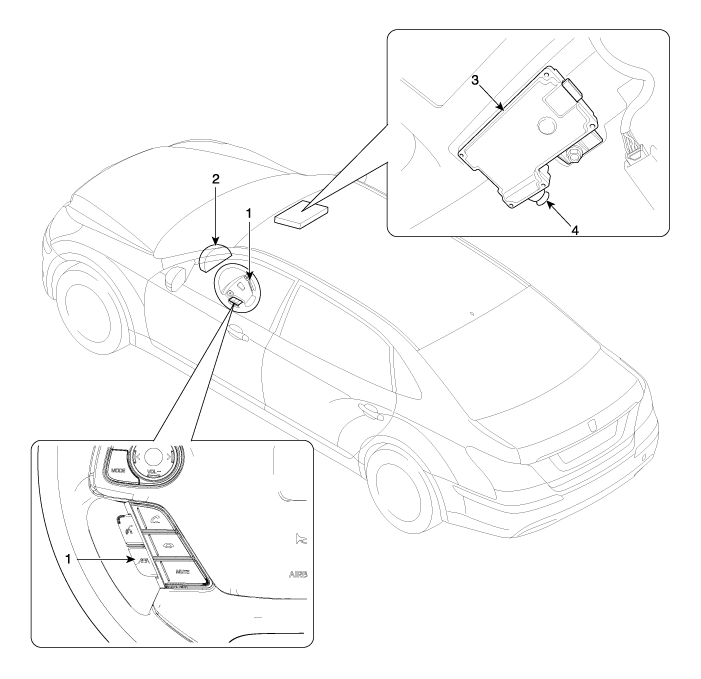

Components

1. LDWS ON/OFF Switch
2. Instrument Cluster
3. LDWS Unit
4. Camera Module

    Lane Departure Warning System (LDWS)
    ...

    Description and Operation
    Description System Operation Typically, lane departure warning is activated at a speed over 70 km/h, but suppressed in case of unintentional lane departure when driver do not operate turn sign ...
