| Components |

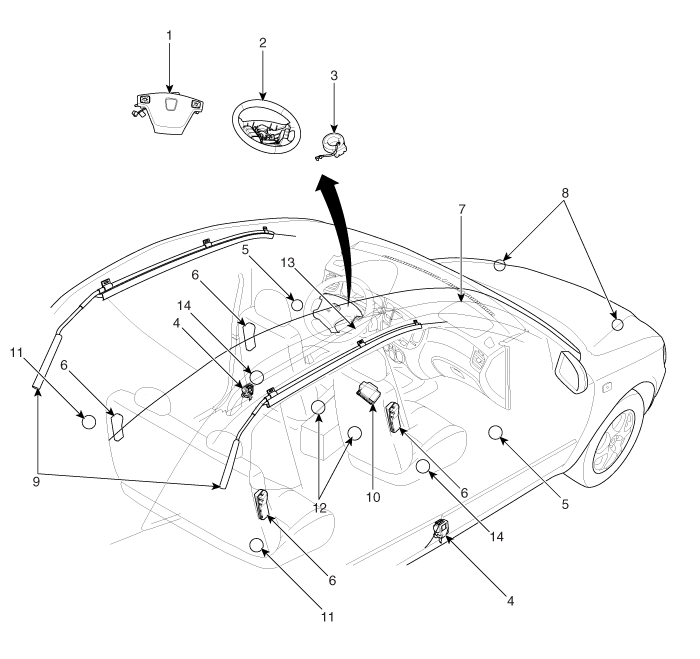

| 1. Driver Airbag (DAB) 2. Steering Wheel 3. Clock Spring 4. Seat Belt Pretensioner (BPT) 5. Front Side Impact Sensor (FSIS) 6. Side Airbag (SAB) 7. Passenger Airbag (PAB) | 8. Front Impact Sensor (FIS) 9. Curtain Airbag (CAB) 10. Supplemental Restraint System Control Module (SRSCM) 11. Rear Side Impact Sensor (RSIS) 12. Seat Belt Buckle Switch (BS) 13. Knee Airbag (KAB) 14. Emergency Fastening Device (EFD) |
| Components Location |
| Supplemental Restraint System Control Module (SRSCM) |

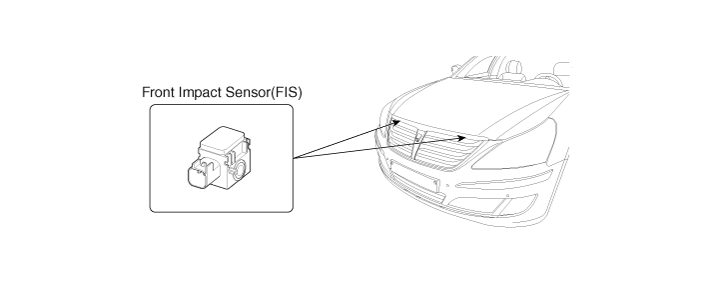

| Front Impact Sensor (FIS) |

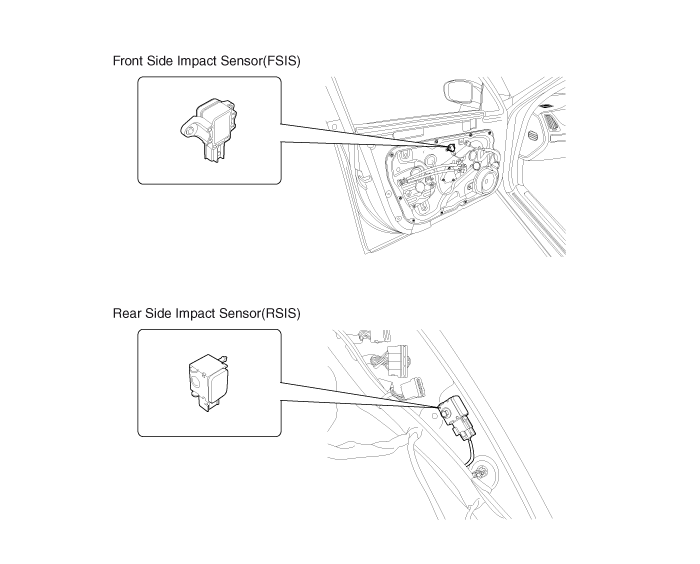

| Side Impact Sensor (SIS) |

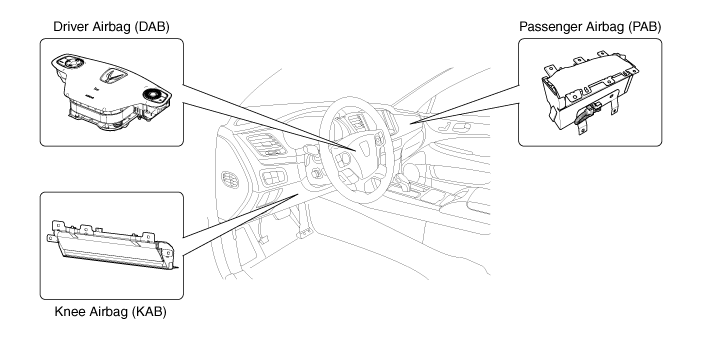

| Driver Airbag (DAB) / Passenger Airbag (PAB) / Knee Airbag (KAB) |

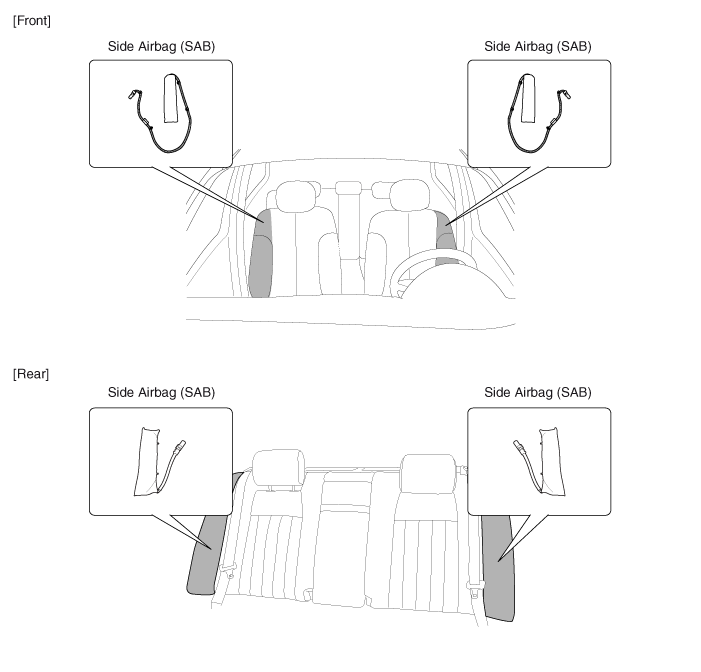

| Side Airbag (SAB) |

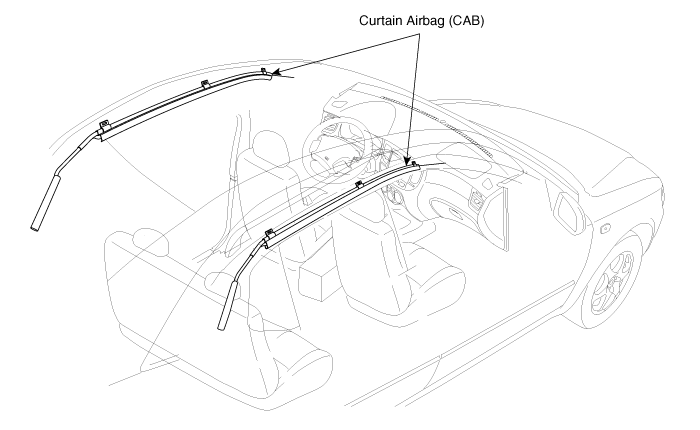

| Curtain Airbag (CAB) |

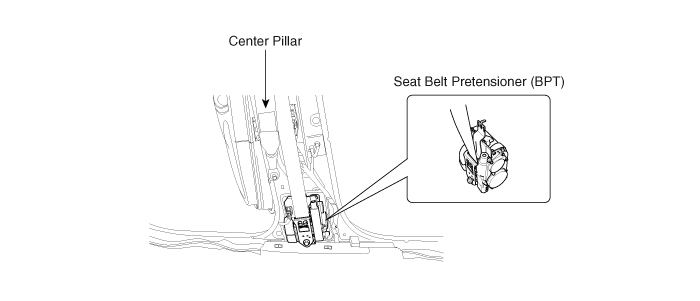

| Seat Belt Pretensioner (BPT) |
Repair procedures
Component Replacement after Deployment
Before doing any SRS repairs, use the GDS to check for DTCs.
Refer to the Diagnostic Trouble Code list for repairing of the related
...
SRSCM
...
