Hyundai Equus: Console Armrest Repair procedures - Floor Console - Body (Interior and Exterior) - Hyundai Equus VI 2009-2024 Service ManualHyundai Equus: Console Armrest Repair procedures

Second generation VI (2009–2024) / Hyundai Equus VI 2009-2024 Service Manual / Body (Interior and Exterior) / Floor Console / Console Armrest Repair procedures

Replacement
[Front Console Armrest]

•
Put on gloves to protect your hands.

•
When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
•
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
•
Take care not to bend or scratch the trim and panels.
1.

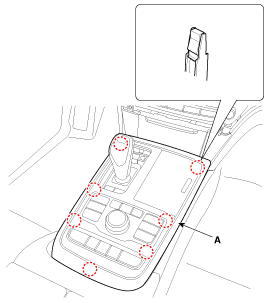

Using a screwdriver or remover, remove the front console upper complete (A).

2.
Disconnect the connectors (A).

3.
Remove the console armrest tray (A).

4.
Remove the console armrest service cover (A).

5.
Loosen the mounting bolts, remove the console armrest (A).

6.
Disconnect the connectors (A).
7.
Remove the front console armrest (B).

8.
Install in the reverse order of removal.

•
Make sure the connector is connected properly.
•
Replace any damage clips.
[Rear Console Armrest]

•
Put on gloves to protect your hands.

•
When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
•
Use a plastic panel removal tool to remove interior trim pieces to protect from marring the surface.
•
Take care not to bend or scratch the trim and panels.
1.
Remove the rear seat cushion assembly.
(Refer to Rear Seat - "Rear Seat Assembly")
2.
Remove the rear seat back cover assembly.
(Refer to Rear Seat - "Rear Seat Assembly")
3.

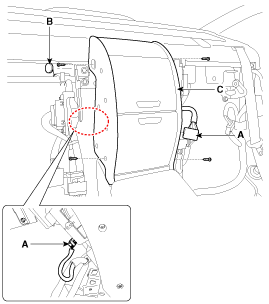

Disconnect the connectors (A).
4.
Remove the caps (B).
5.
After loosening the mounting bolts, remove the rear tower console complete assembly (C).

6.
Loosen the mounting screws and bolts, remove the rear console armrest (A).

7.
Install in the reverse order of removal.

•
Make sure the connector is connected properly.
•
Replace any damage clips.
