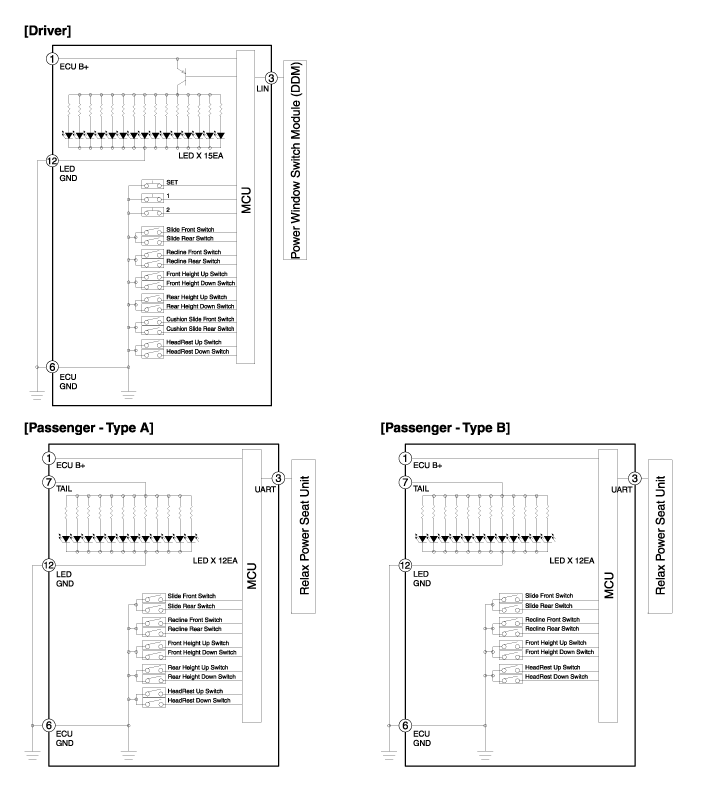

| Circuit Diagram (Power Seat Control Switch) |
Memory Power Seat Switch Components and Components Location
Components
...
Memory Power Seat Switch Repair procedures
Removal
1.
Disconnect the negative (-) battery terminal.
2.
Remove the door trim (A) after loosening mounting screws.
(Refer to Body - "Front Door Trim")
3.
Remove the memory power seat c ...
