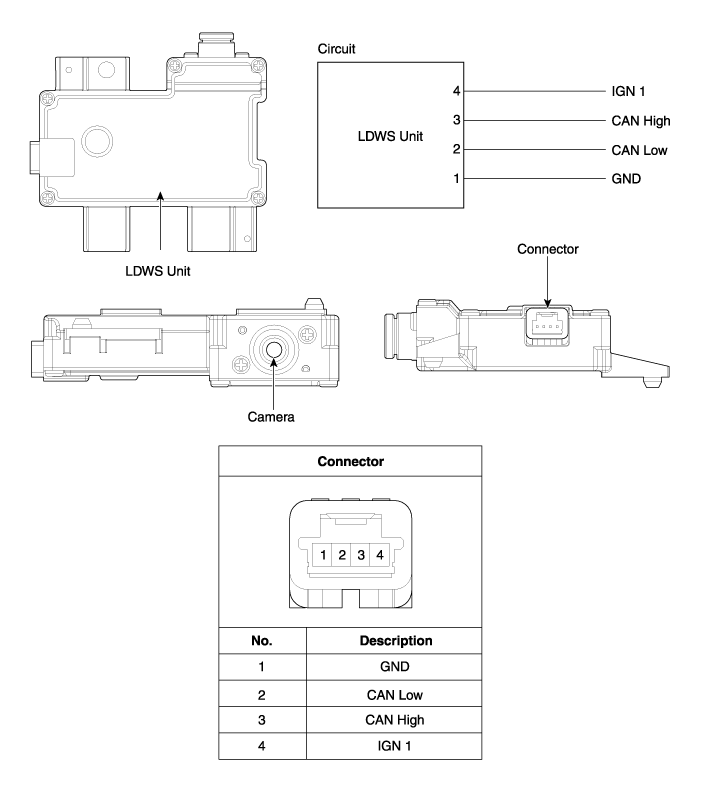

Hyundai Equus: Lane Departure Warning System (LDWS) Unit Components and Components Location

Description and Operation

Description System Operation Typically, lane departure warning is activated at a speed over 70 km/h, but suppressed in case of unintentional lane departure when driver do not operate turn sign ...

Lane Departure Warning System (LDWS) Unit Repair procedures

Removal 1. Disconnect the negative (-) battery terminal. 2. Remove the LDWS unit cover (A). 3. Remove the LDWS unit connector (A). 4. Remove the front side of roof trim to remove the L ...
