WARNING - Hot liquids
WARNING
Keep cans or bottles out of direct sun light and do not put them in a vehicle that is heated up. It may explode.

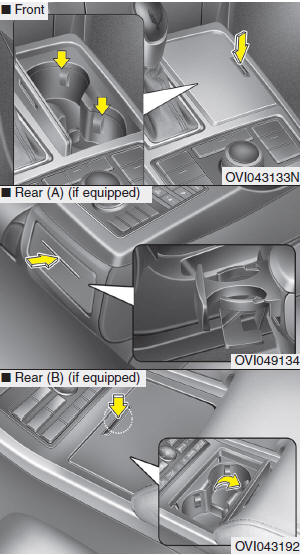

Cups or small beverage cans may be placed in the cup holders.
Front
To open the cover, press the cover and it will slowly open.
Rear (A)
To open the cover, press the button and it will slowly open.
Rear (B) (if equipped)
To open the cover, press the cover and it will slowly open.
Sunvisor
Use the sunvisor to shield direct light through the front or side windows.

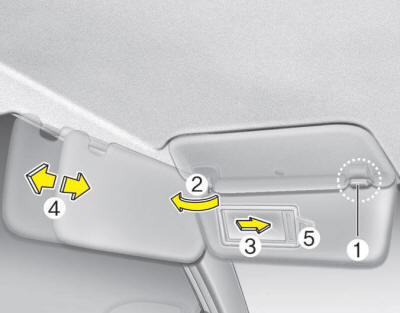

To use the sunvisor, pull it downward. To use the sunvisor for the side window, pull it downward, unsnap it from the bracket (1) and swing it to the side (2).
To use the vanity mirror, pull down the visor and slide the mirror cover (3). Adjust the sunvisor extension forward or backward (4).
The ticket holder (5) is provided for holding a tollgate ticket.
CAUTION - Vanity mirror lamp
Close the vanity mirror cover securely and return the sunvisor to its original position after use. If the vanity mirror is not closed securely, the lamp will stay on and could result in battery discharge and possible sunvisor damage.
WARNING
For your safety, do not obstruct your vision when using the sunvisor.
