Hyundai Equus: External AMP Components and Components Location
Second generation VI (2009–2024) / Hyundai Equus VI 2009-2024 Service Manual / Body Electrical System / Premium AVN System / External AMP Components and Components Location
Second generation VI (2009–2024) / Hyundai Equus VI 2009-2024 Service Manual / Body Electrical System / Premium AVN System / External AMP Components and Components Location

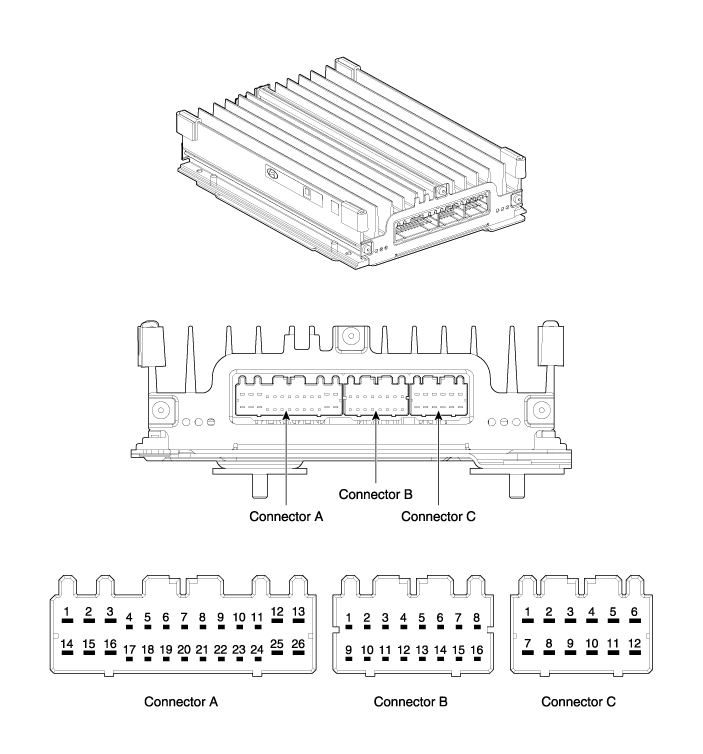

| Components |
Connector Pin Information
| No. | Connector A | Connector B | Connector C |
| 1 | B (+) | Right surround (+) | right rear door (+) |
| 2 | B (+) | Left surround (+) | left rear door (+) |
| 3 | B (+) | Rear right midrange/tweeter (+) | Right front midrange/tweeter (+) |
| 4 | - | Rear left midrange/tweeter (+) | Left front midrange/tweeter (+) |
| 5 | CAN (+) | - | Right front door (+) |
| 6 | CAN (-) | - | Left front door (+) |
| 7 | ACC | Center speaker (+) | right rear door (-) |
| 8 | - | - | left rear door (-) |
| 9 | - | Right surround (-) | Right front midrange/tweeter (-) |
| 10 | - | Left surround (-) | Left front midrange/tweeter (-) |
| 11 | NAVI (+) | Rear right midrange/tweeter (-) | Right front door (-) |
| 12 | Sub woofer 2 (+) | Rear left midrange/tweeter (-) | Left front door (-) |
| 13 | Sub woofer 1 (+) | - | x |
| 14 | GND | - | |
| 15 | GND | Center speaker (-) | |
| 16 | GND | - | |
| 17 | - | x | |
| 18 | SPDIF (+) | ||
| 19 | SPDIF (-) | ||
| 20 | - | ||
| 21 | - | ||
| 22 | - | ||
| 23 | - | ||
| 24 | NAVI (-) | ||
| 25 | Sub woofer 2 (-) | ||
| 26 | Sub woofer 1 (-) |
