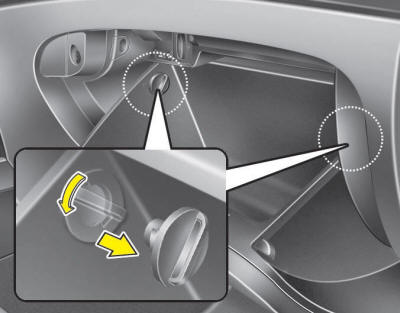

1. With the glove box open, remove the stoppers on both sides to allow the glove box to hang freely on the hinges.

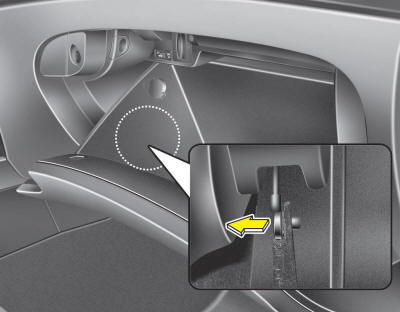

2. Remove the cylinder at the left of the glove box.

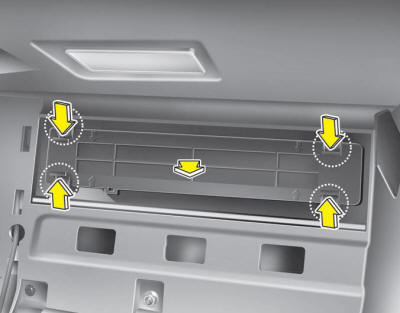

3. Remove the climate control air filter case pulling out both sides of the cover.

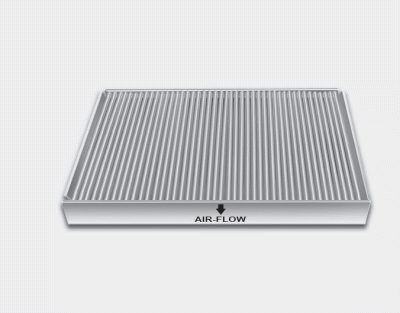

4. Replace the climate control air filter.
5. Reassemble in the reverse order of disassembly.
✽ NOTICE
When replacing the climate control air filter install it properly. Otherwise, the system may produce noise and the effectiveness of the filter may be reduced.
Camshaft Position Sensor (CMPS) Schematic Diagrams
Circuit Diagram
...
Inhibitor Switch Specifications
Specifications
x Type: Combination of output signals from 4 terminals
Power supply (V)12Output typeCombination of output signals
Signal Code Table
PIN No.PP-RRR-NNN-DDS112V12VO ...
Injector Repair procedures
Inspection
1.
Turn the ignition switch OFF.
2.
Disconnect the injector connector.
3.
Measure resistance between the injector terminals 1 and 2.
4.
Check that the resistance is within t ...
