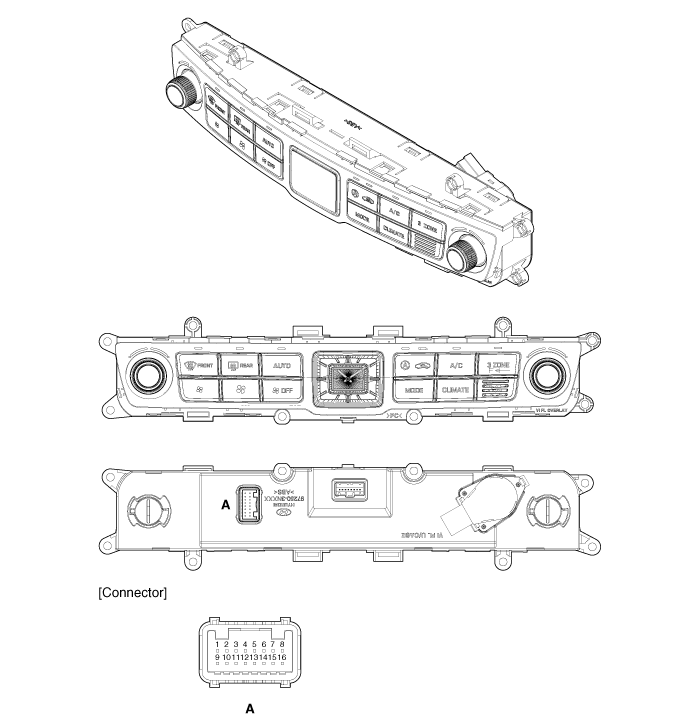

Component |
Connector Pin Function |
Pin No. | Connector A Function |
1 | Ground |
2 | Rheostat (Illumination -) |
3 | Rear Defog Switch |
4 | - |
5 | Detent Out (+) |
6 | HTD |
7 | Illumination + (Tail) |
8 | - |
9 | Ground |
10 | - |
11 | Climate CAN High |
12 | Climate CAN Low |
13 | - |
14 | Ignition 1 |
15 | Battery |
16 | Ignition 2 |
Valve Body Components and Components Location
Components Location
1. Input speed sensor2. Middle speed sensor3. Output speed sensor4. E Module5. Line presure control solenoid valve6. Damper clutch control solenoid valve7. ON/OFF solenoid val ...
Transmission Control Module (TCM) Schematic Diagrams
1. TCM Connector and Terminal Function
2. TCM Terminal Function
Connector
PinDescriptionPinDescription1Battery power48-2Battery power49-3Power(IG 1)5027 Brake control solenoid valve4Ground51-5G ...
BlueLink Control Switch Repair procedures
Removal
1.
Remove the Electro chromic Inside rear view mirror.
(Refer to Electro Chromic Inside Rear View Mirror)
Installation
1.
Install the Electro chromic Inside rear view mirror.
(Refer ...
