| Inspection |
| 1. |
The DDM inputs can be checked using the GDS. |
| 2. |
To check the input value of door lock switch, select option "IPM". |
| 3. |
Select option "DDM (Driver Door Module)". |
| 4. |

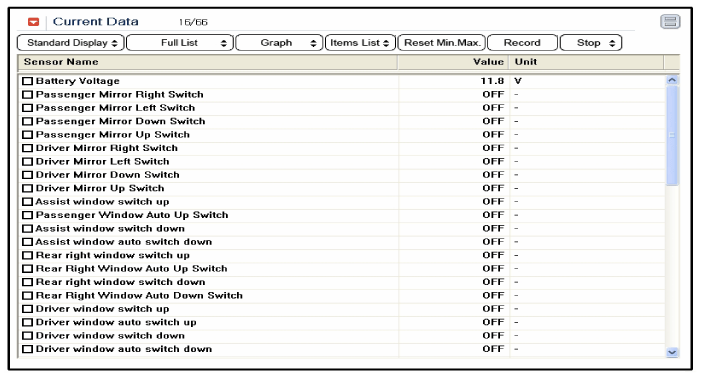

Select option "Input/Output monitoring".
|
| 5. |

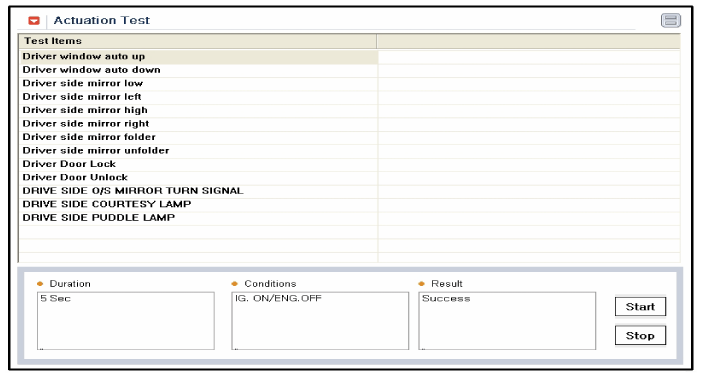

To check the input value of door lock switch in force mode, select option "ACTUATION TEST".
|
| Removal |
Driver Power Mirror Switch
| 1. |
Disconnect the negative (-) battery terminal. |
| 2. |
Remove the front door trim. (Refer to the Body group - "Front Door") |
| 3. |
Disconnect the DDM module connector (A).
|
| 4. |
Remove the DDM module with power mirror switch after loosening the mounting screws.
|
| Installation |
| 1. |
Install the DDM module. |
| 2. |
Install the front door trim. |
Power Mirror Switch Components and Components Location
Components
...
Power Door Mirror Actuator Repair procedures
Inspection
1.
Remove the front door quadrant inner cover. Take care not to damage fixing clips.
(Refer to Body - "Front Door")
2.
Disconnect the power door mirror connector from the harness. ...
