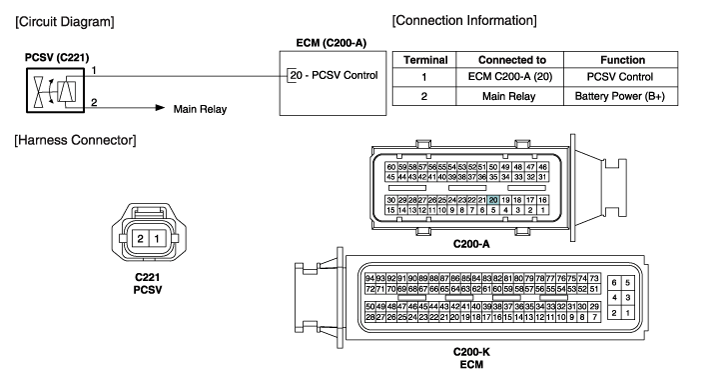

Hyundai Equus: Purge Control Solenoid Valve (PCSV) Schematic Diagrams

Purge Control Solenoid Valve (PCSV) Specifications

Specification ItemSpecificationCoil Resistance (x)14.0 ~ 18.0 [20°C(68°F)] ...

Purge Control Solenoid Valve (PCSV) Repair procedures

Inspection 1. Turn the ignition switch OFF. 2. Disconnect the PCSV connector. 3. Measure resistance between the PCSV terminals 1 and 2. 4. Check that the resistance is within the speci ...
