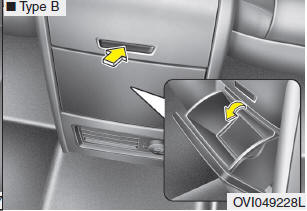

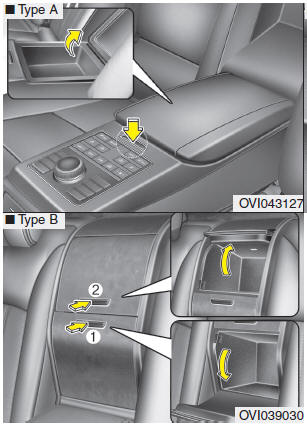

To open the console storage, push the open button. After using the console storage, make sure to close it.
