Component Location

    Components and Components Location

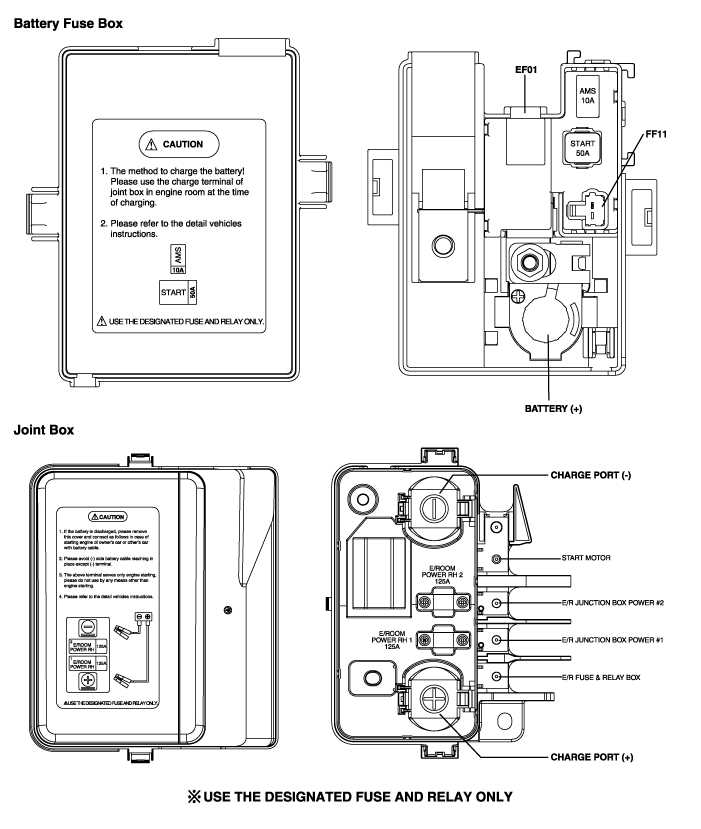

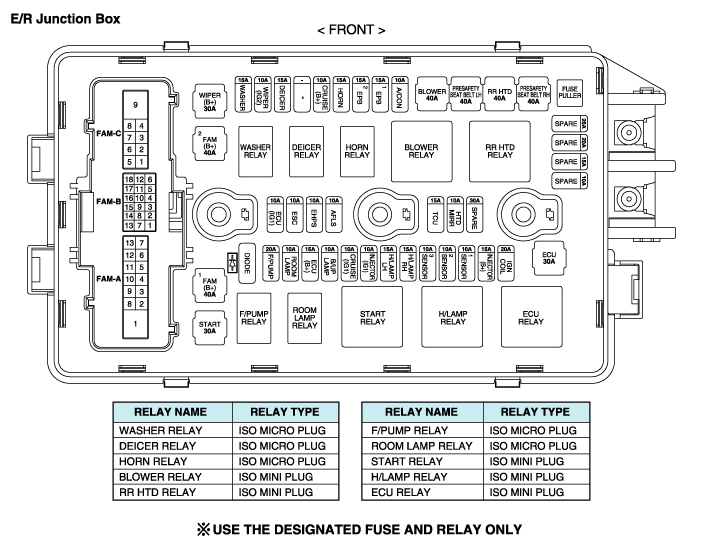

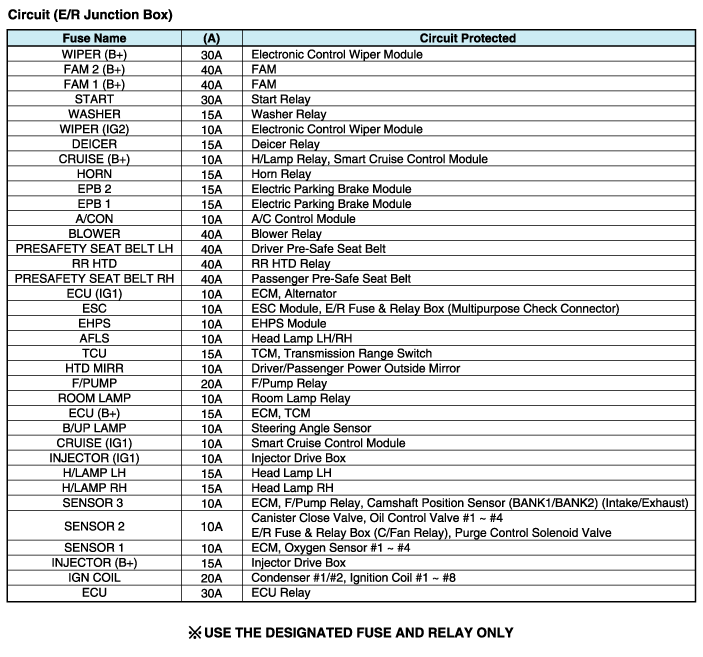

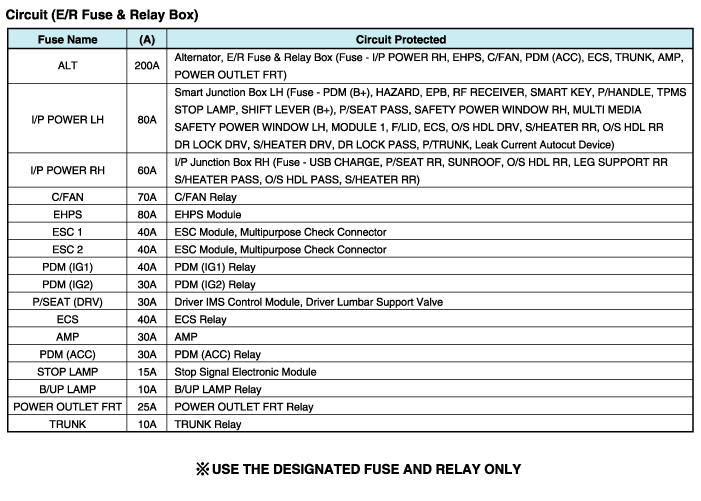

    Component Location 1. Engine room junction box & FAM (Front Area Module)2. SJB (Smart Junction Box)3. Engine Room Fuse & relay box4. Passenger compartment relay box (RH) ...

    Relay Box (Engine Compartment) Repair procedures
    Inspection 1. Disconnect the negative (-) battery terminal. 2. Pull out the relay from the engine compartment relay box. Power Relay (Type A)     - Do not use pliers. ...
