Hyundai Equus: Sedan Under Body - Body Dimensions - Body (Interior and Exterior) - Hyundai Equus VI 2009-2025 Service ManualHyundai Equus: Sedan Under Body

Under body

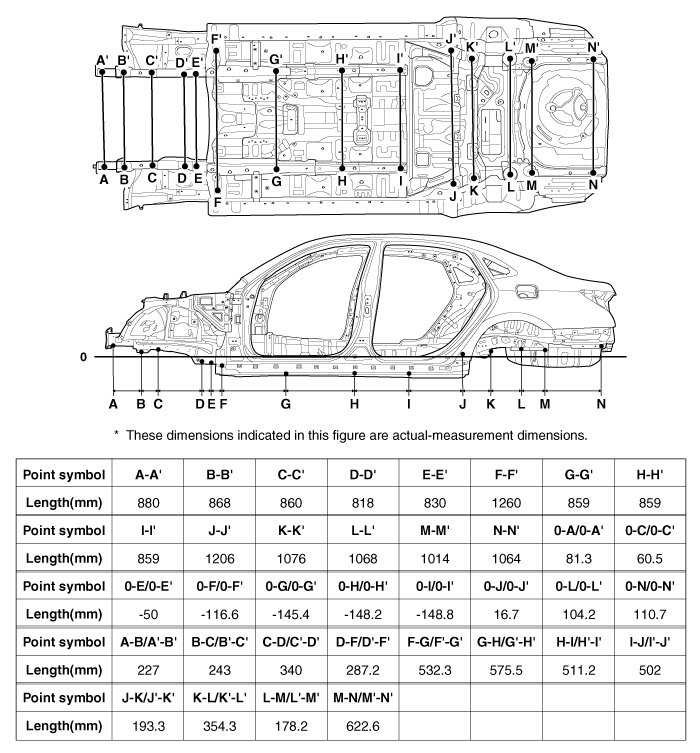

Projected dimensions

Tooling hole (O25)

Front sub frame mounting pipe (O25)

Tooling hole (O14)

Front sub frame mounting pipe (O27)

Tooling hole (O15)

Tooling & paint drain hole (O6.6)

Tooling hole (O25)

Tooling hole (O10)

Parking brake bracket mounting hole
(O8)

Tooling hole (O13)

Rear sub frame mounting pipe (O28)

Rear suspension spring mounting hole
(O20)


Rear sub frame mounting bolt (O28)

Tooling hole (O11)

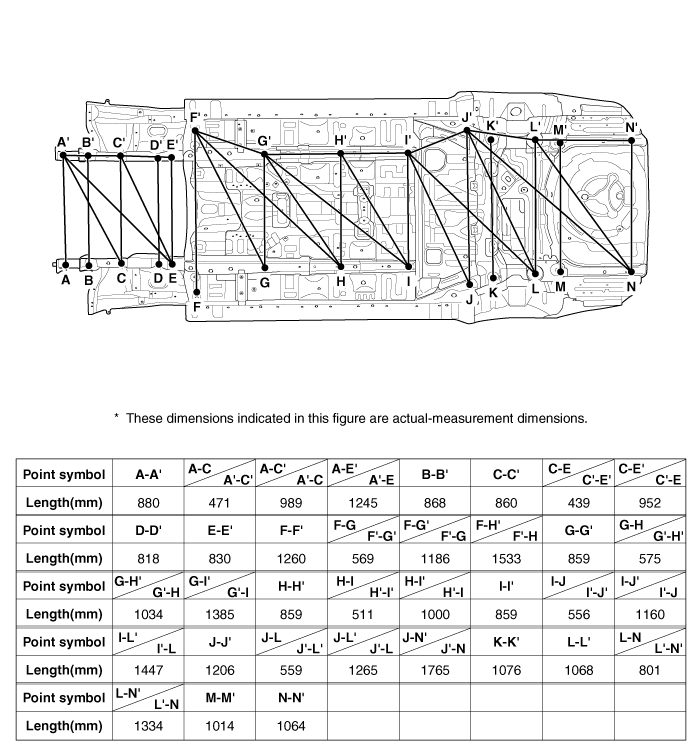

Actual measurement dimensions

Tooling hole (O25)

Front sub frame mounting pipe (O25)

Tooling hole (O14)

Front sub frame mounting pipe (O27)

Tooling hole (O15)

Tooling & paint drain hole (O6.6)

Tooling hole (O25)

Tooling hole (O10)

Parking brake bracket mounting hole
(O8)

Tooling hole (O13)

Rear sub frame mounting pipe (O28)

Rear suspension spring mounting hole
(O20)


Rear sub frame mounting bolt (O28)

Tooling hole (O11)



    Sedan Rear Body
    Rear body Roof panel rear cornerSide outer panel rear cornerRear parkage tray panel tooling hole(O23)Side outer panel rear cornerTooling hole (14X10)Tooling hole (O10) ...

    Limousine Front Body
    Front body A Roof panel front cornerFront pillar outer cornerHood hinge mounting hole (O13)Shockabsorber mounting hole (O24)Front end module mounting hole (O9)Cowl top cover mounting hole (O7) F ...
