Hyundai Equus: Side Sill Molding Repair procedures - Body Side Molding - Body (Interior and Exterior) - Hyundai Equus VI 2009-2025 Service ManualHyundai Equus: Side Sill Molding Repair procedures

Second generation VI (2009–2025) / Hyundai Equus VI 2009-2025 Service Manual / Body (Interior and Exterior) / Body Side Molding / Side Sill Molding Repair procedures

Replacement

•
Put on gloves to protect your hands.

•
When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
•
Take care not to scratch the body surface.
1.
Loosen the side sill molding mounting screws.
2.

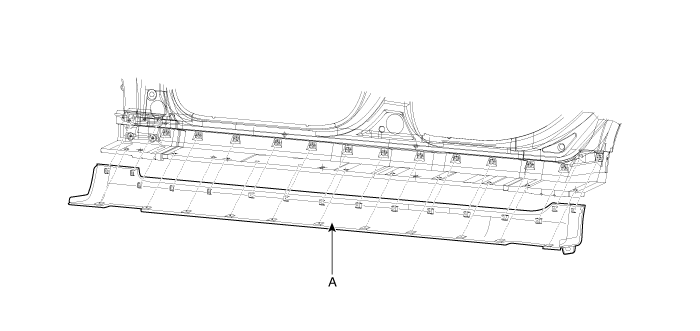

Using a screwdriver or remover, remove the side sill molding (A).

3.
Install in the reverse order of removal.

•
Replace any damaged clips.
