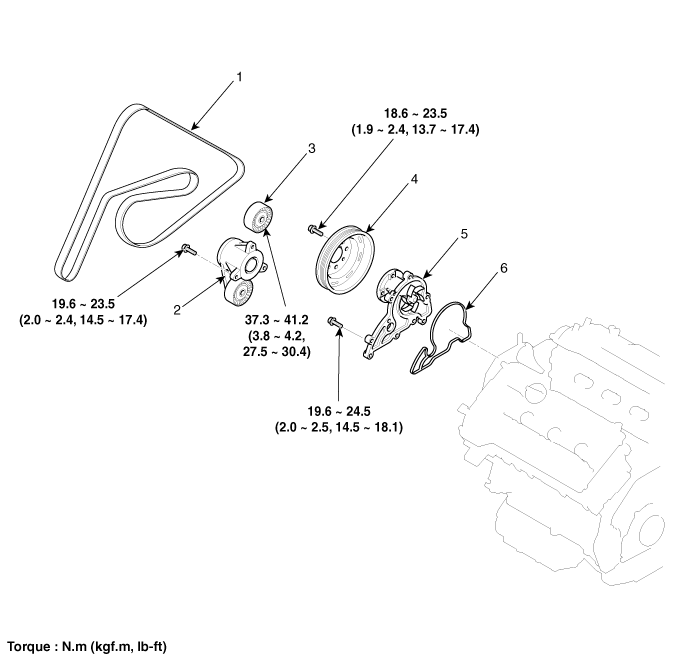

| Components |
| 1. Drive belt 2. Drive belt tensioner 3. Drive belt idler | 4. Water pump pulley 5. Water pump 6. Water pump gasket |
Radiator Repair procedures
Inspection
Radiator Cap Testing
1.
Remove the radiator cap, wet its seal with engine coolant, then install it to pressure tester.
2.
Apply a pressure of 93 ~ 123kPa (0.95 ~ 1.25kgf/cmx, 14 ~ ...
Water pump Repair procedures
Removal and Installation
Water Pump
1.
Disconnect the negative terminal (A) from the battery.
Tightening torque :
3.9 ~ 5.9 N.m (0.4 ~ 0.6 kgf.m, 2.9 ~ 4.3 lb-ft)
2.
Remove the air du ...
