Hyundai Equus: Blower Motor Repair procedures

Second generation VI (2009–2024) / Hyundai Equus VI 2009-2024 Service Manual / Heating, Ventilation and Air Conditioning / Blower / Blower Motor Repair procedures

Inspection

1.	Connect the battery voltage and check the blower motor rotation.

2.	If the blower motor does not operate well, substitute with a known-good blower motor and check for proper operation.

3.	Replace the blower motor if it is proved that there is a problem with it.

Replacement

1.	Disconnect the negative (-) battery terminal.

2.	Remove the cowl side trim. (Refer to Body - "Cowl Side Trim")

3.	To remove the crash pad under cover [RH] (A), press both sides of the locking pin and then pull it down.

4.	Disconnect the under lamp connector (A).

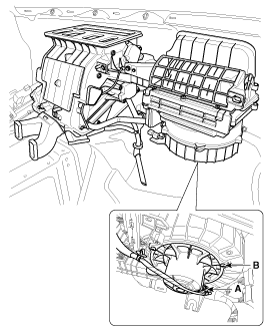

5.	Disconnect the blower motor connector (A) and then remove the blower motor (B) after loosening the screws.

6.	Install in the reverse order of removal.

Blower Unit Repair procedures

Replacement 1. Disconnect the negative (-) battery terminal. 2. Remove the heater and blower assembly. (Refer to Heater - "Heater Unit") 3. Separate the blower unit (A) from the heater un ...

Power Mosfet Repair procedures

Inspection 1. Turn the ignition switch ON. 2. Manually operate the control switch and measure the voltage of the blower motor. 3. Select the control switch to raise the voltage until high ...
