Second generation VI (2009–2024) / Hyundai Equus 2009-2024 Owners Manual / Features of your vehicle / Head up display (HUD) (If equipped) / Head Up Display Information

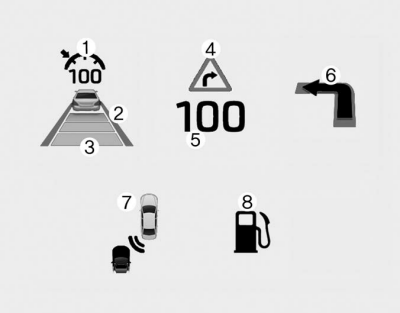

1. Cruise setting speed
2. Lane Departure Warning System (LDWS) information (if equipped)
3. Advanced Smart Cruise Control (ASCC) information (if equipped)
4. Road signs
5. Speedometer
6. Turn By Turn (TBT) navigation information (if equipped)
7. Blind Spot Detection (BSD) system information (if equipped)
8.Warning lights (Low fuel, BSD)
On the "User settings Mode" of the LCD display, you can activate or deactive the Turn By Turn (TBT) navigation, Smart Cruise Control (SCC), Lane Departure Warning System (LDWS), and Blind Spot Detection (BSD) system information.
✽ NOTICE
If you select the Turn By Turn (TBT) navigation information as HUD contents, the Turn By Turn (TBT) navigation information will not be displayed on the LCD Display.
Head Up Display ON/OFF
To activate the head up display, press the HUD button.
If you press the HUD button again, the head up display will be deactivated. ...
Head Up Display Setting
On the LCD display, you can change the head up display settings as follows.
1. Display height
2. Illumination
3. Font color
4. Font size
5. Contents setting ...
