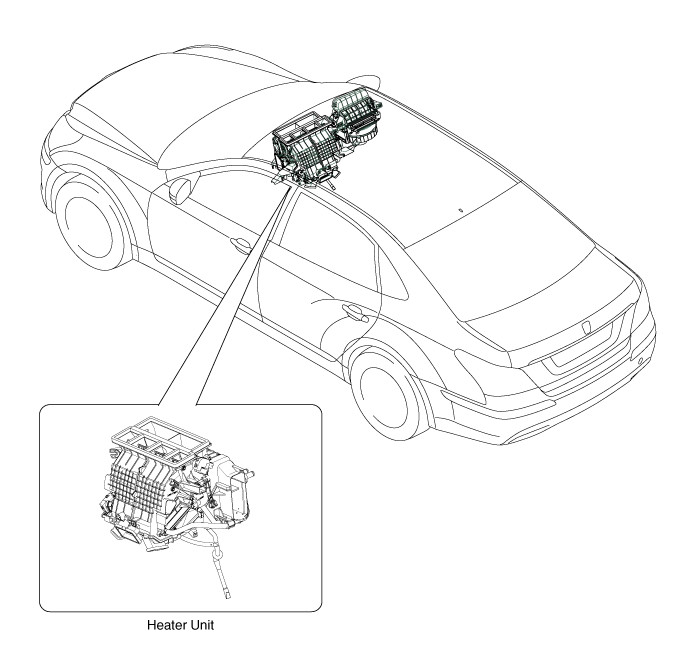

Component Location |
Components |

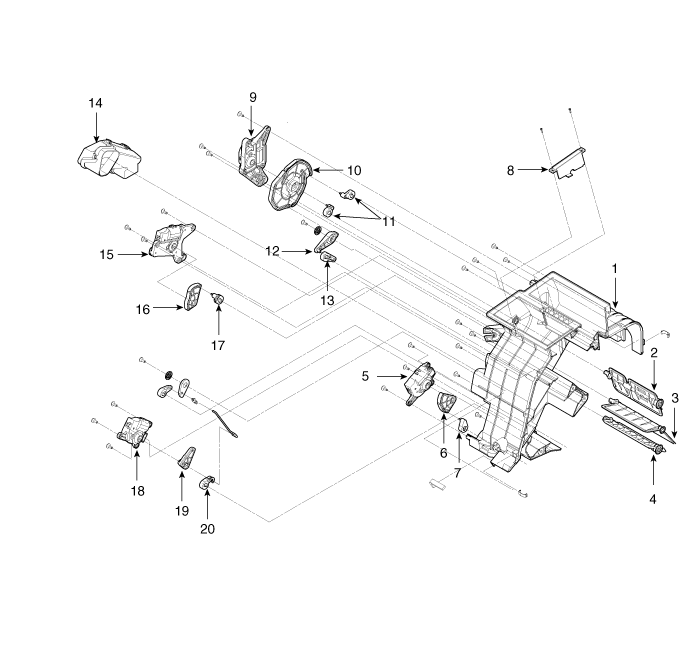

1. Heater Case (Left) 2. Vent Door (Left) 3. Temperature Door (Left) 4. Floor Door (Left) 5. Console Temperature Control Actuator (A) 6. Console Temperature Lever 7. Console Temperature Arm 8. Vent Guide 9. Mode Control Actuator 10. Mode Cam | 11. Vent Door Arm 12. Floor Door Lever 13. Floor Door Arm 14. Shower Duct 15. Temperature Control Actuator (Driver's side) 16. Temperature Door Lever (Driver's side) 17. Temperature Door Arm (Driver's side) 18. Console Temperature Control Actuator 19. Console Temperature Lever 20. Console Temperature Arm |

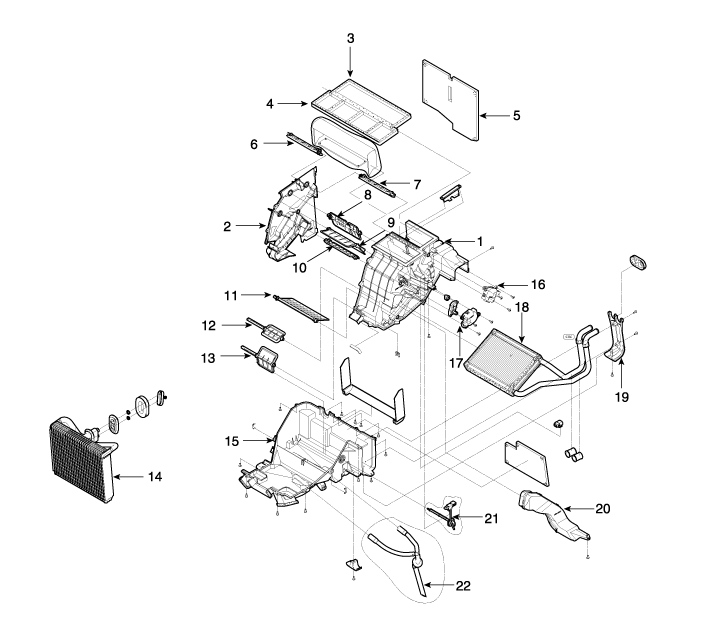

1. Heater Case (Right) 2. Seperator 3. Center Duct Seal 4. Center Duct Seal 5. Insulator 6. Def Door (Left) 7. Def Door (Right) 8. Vent Door (Right) | 9. Temperature Door (Right) 10. Floor Door (Right) 11. Console Temperature Door 12. Console Temperature Door (A) 13. Console Mode Door 14. Evaporator Core 15. Heater Lower Case 16. Auto Defogging Actuator | 17. Temperature Control Actuator (Passenger's side) 18. Heater Core 19. Heater Core Cover 20. Shower duct 21. Evaporator Temperature Sensor 22. Drain Hose |
