Replacement |
1. |
Disconnect the negative (-) battery terminal. |
2. |
Recover the refrigerant with a recovery/recycling/charging station. |
3. |
When the engine is cool, drain the engine coolant from the radiator.
(Refer to Engine Mechanical System - “Coolant”) |
4. |
Remove the expansion valve (A) from the evaporator core.
|
5. |
Disconnect the inlet (A) and outlet (B) heater hoses from the heater unit.
|
6. |
Remove the front pillar trim.
(Refer to Body - "Front Pillar Trim") |
7. |
Remove the front seat assembly.
(Refer to Body - "Front Seat Assembly") |
8. |
Remove the floor console assembly.
(Refer to Body - "Floor Console Assembly") |
9. |
Remove the shift lever assembly.
(Refer to Automatic Transaxle System - "Shift lever") |
10. |
Remove the cowl side trim.
(Refer to Body - "Cowl Side Trim") |
11. |
Remove both sides of the crash pad side cover.
(Refer to Body - "Crash Pad Side Cover") |
12. |
Remove the crash pad lower panel.
(Refer to Body - "Crash Pad Lower Panel") |
13. |
Remove the driver's side crash pad under cover (A). |
14. |
Remove the steering wheel.
(Refer to Steering System - "Steering Wheel") |
15. |
Remove the multifunction switch.
(Refer to Body Electrical System - "Multifunction Switch") |
16. |
Remove the steering column shroud panel.
(Refer to Body - "Steering Column Shroud Panel") |
17. |
Lower the steering column after loosening the mounting bolts.
(Refer to Steering System - "Steering Column and Shaft") |
18. |
Remove the glove box housing.
(Refer to Body - "Glove Box Housing") |
19. |
Disconnect the connectors (A) and loosen the mounting nut to remove the LVDS (B). |
20. |
Disconnect the junction box connectors (A). |
21. |
Disconnect the multi box connectors (A).
[Driver's side]
[Passenger's side] |
22. |
Disconnect the connectors (A) and the mounting clips in the front pillar.
[Driver's side]
[Passenger's side] |
23. |

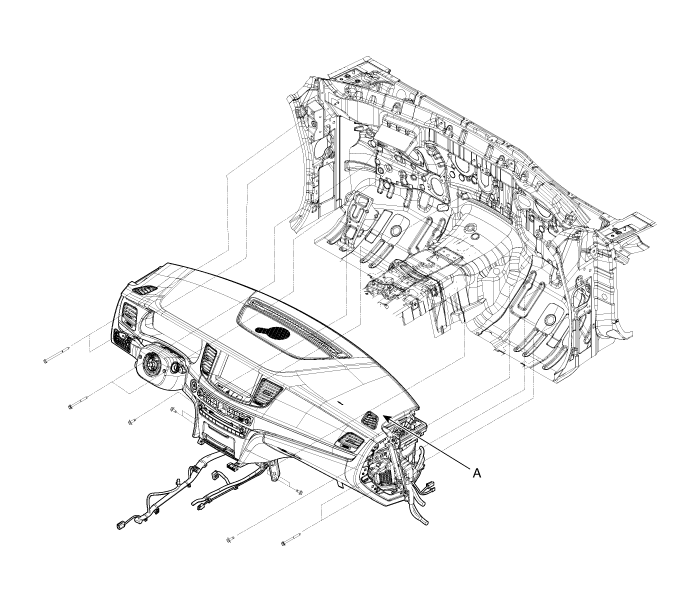

After loosening the nuts and bolts remove the main crash pad (A) and cowl cross bar assembly (A) together. |
24. |
Loosen the drain hose fixing clip under the vehicle. |
25. |
Disconnect the heater unit connectors. |
26. |
Remove the heater and blower unit from the crash pad after loosening the mounting nuts. |
27. |
Separate the blower unit (A) from the heater unit (B) after loosening the screws. |
28. |
Install in the reverse order of removal. |
