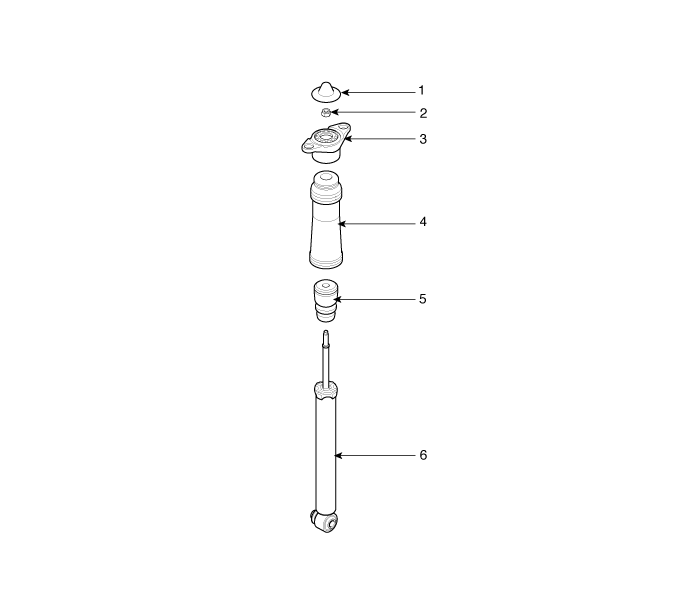

Components

1. Insulator cap
2. Lock nuts
3. Bracket assembly
4. Dust cover
5. Bumper stopper
6. Shock absorber

    Components and Components Location
    Components Location 1. Rear shock absorber2. Rear upper arm3. Rear trailing arm4. Rear Assist arm5. Rear sub frame6. Rear disk7. Rear front upper arm ...

    Rear Shock Absorber Repair procedures
    Removal 1. Remove the rear wheel and tire (A) from rear hub . Tightening torque: 88.3 ~ 107.9 N.m (9.0 ~ 11.0 kgf.m, 65.1 ~ 79.6 lb-ft)     • Be careful not to damage t ...
