Hyundai Equus: Sunroof Guide Repair procedures - Sunroof - Body (Interior and Exterior) - Hyundai Equus VI 2009-2024 Service ManualHyundai Equus: Sunroof Guide Repair procedures

Replacement
1.
Remove the sunroof assembly.
(Refer to Sunroof - "Sunroof Assembly")
2.
Remove a drip link assembly (A) after lowering a guide thoroughly by pushing a slide to rear.

3.

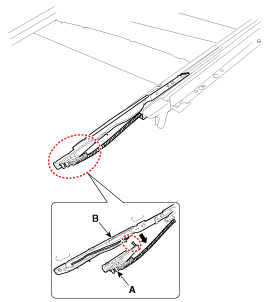

Remove the guide (A) and slide (B).

4.
Install in the reverse order of removal.

Make sure to align the slide with the center of “(A)” and “(B)”.
Make sure to initialize the motor.
