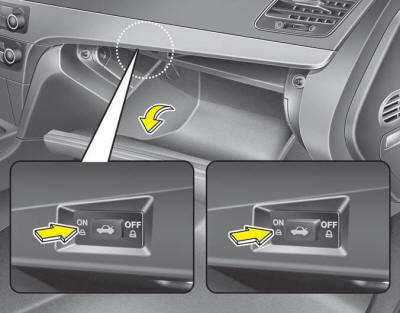

When the trunk lid control button is ON (depressed), the power trunk can be controlled with the power trunk main control button, power trunk open, close button, and the smart key.
When this trunk lid control button is OFF (not depressed), the power trunk can be controlled using the mechanical key of the smart key only.
Even though the trunk lid control button is OFF (not depressed), the trunk will still be propelled upward by mechanical force if the trunk is manually opened more than 10 degrees beyond the fully closed position. In addition, if the trunk is manually closed to the secondary latch position, the trunk will be electrically moved to the fully latched position.
WARNING
CAUTION
Close the trunk, and keep the trunk lid control button in the OFF (not depressed) position before washing the vehicle in an automatic car wash.

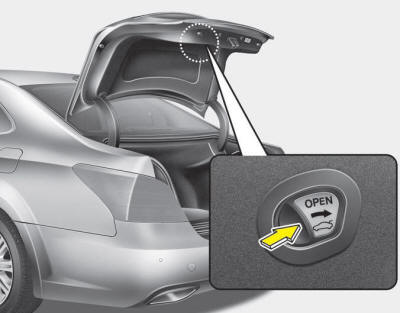

Emergency Trunk Safety Release
Your vehicle is equipped with an Emergency Trunk Safety Release lever located inside the trunk. When someone is inadvertently locked in the trunk, the trunk can be opened by moving the lever in the direction of the arrow and pushing the trunk open.
WARNING
Components and Components Location
Components
...
ECU Schematic Diagrams
Circuit diagram
1.
ECU Connector
2.
ECU Terminal function
TerminalFunction1Ground2Ground3IGN4Battery5Battery6-7-8-9-10-11-12Reverse Valve 1x(M1 Low Side)13Ambiance Valve14Reverse Valve 2x( ...
Description and Operation
Description
Adaptive Front-lighting System (AFLS)
AFLS(Adaptive Front-lighting System)is a headlamp
orientation control system that takes into account both steering angle
and vehicle speed to ...
