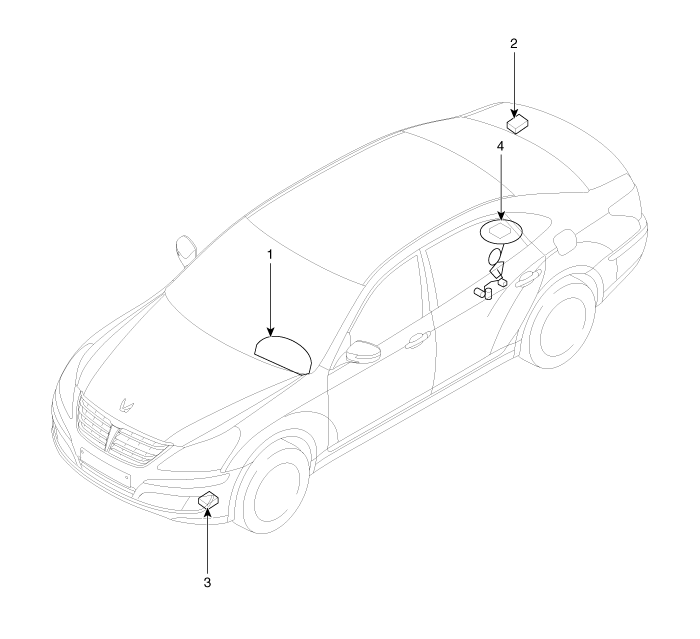

| Component Location |
| 1. Cluster assembly 2. Battery sensor | 3. Washer fluid level sensor 4. Fuel gauge sender |
Instrument Cluster Components and Components Location
Components
Connector Pin Information
No.DescriptionNo.Description1Aig bag +21-2-22Speaker +3Rheostat down switch23Speaker -4Rheostat up switch24-5-25Vehicle speed 4P output6Oil pressure26R Output7 ...
