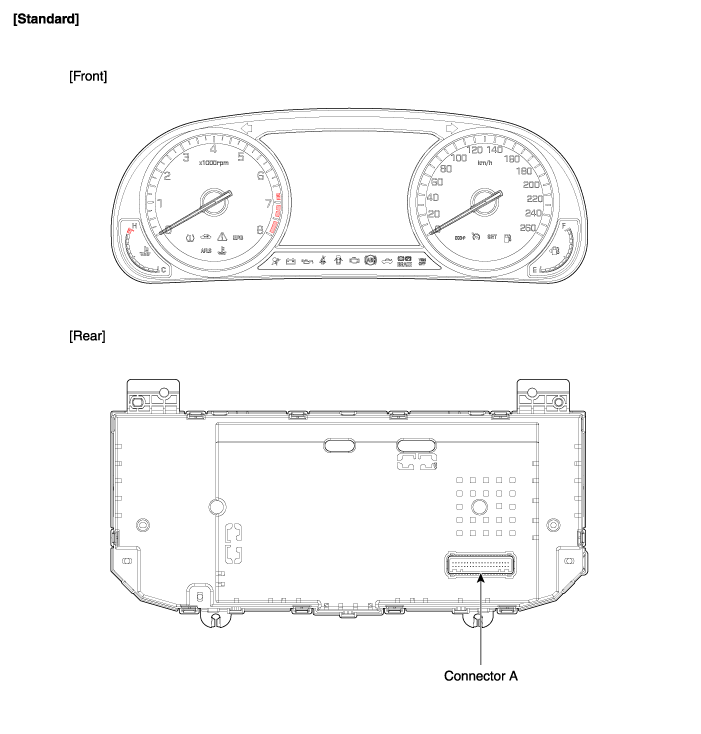

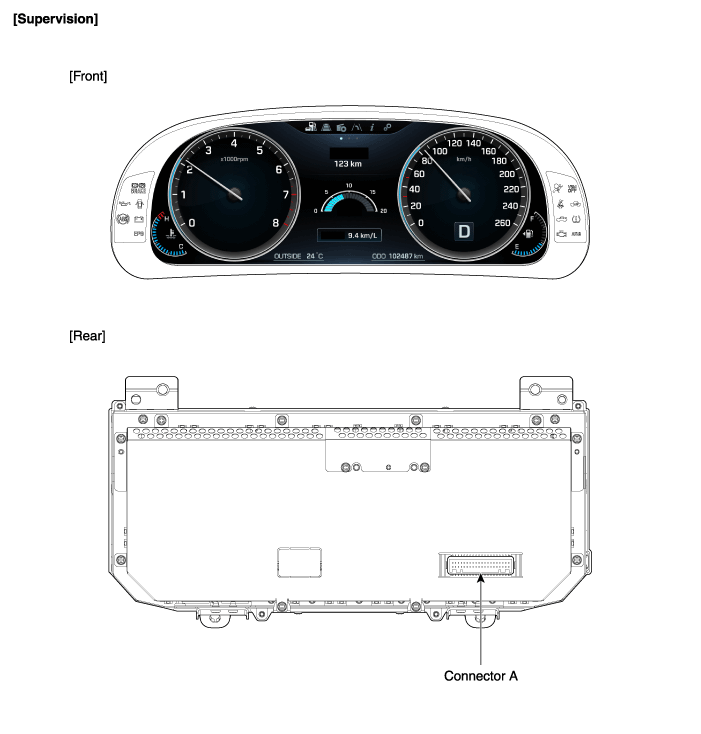

Components

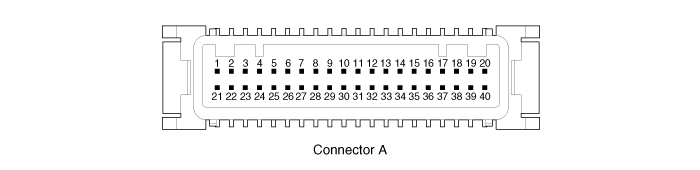

Connector Pin Information
No.
Description
No.
Description
1
Aig bag +
21
-
2
-
22
Speaker +
3
Rheostat down switch
23
Speaker -
4
Rheostat up switch
24
-
5
-
25
Vehicle speed 4P output
6
Oil pressure
26
R Output
7
Low washer
27
P Output
8
Battery charge
28
Detent output
9
Heated wheel indicator
29
-
10
LED OFF (Input)
30
MM_CAN High
11
-
31
MM_CAN Low
12
Driving mode switch
32
C_CAN High
13
D Output
33
C_CAN Low
14
Fuel
34
N Output
15
S Output
35
Illumination Output
16
Fuel GND
36
Power ground
17
-
37
Signal ground
18
-
38
-
19
IGN2 input
39
IGN +
20
Illumination +
40
Battery +

    Components and Components Location
    Component Location 1. Cluster assembly2. Battery sensor3. Washer fluid level sensor4. Fuel gauge sender ...

    Instrument Cluster Schematic Diagrams
    Circuit Diagram ...
