Hyundai Equus: Input Speed Sensor Schematic Diagrams - Automatic Transmission Control System - Automatic Transmission System (SBC) - Hyundai Equus VI 2009-2024 Service ManualHyundai Equus: Input Speed Sensor Schematic Diagrams

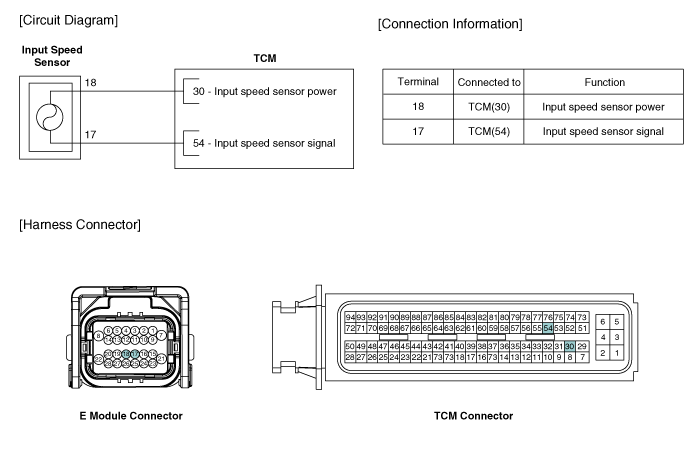

Circuit Diagram

    Input Speed Sensor Specifications
    Specifications x Type: Hall effect sensor x Specifications Operation condition (°C)°F((-)40~150)) -40~302Air gap(mm)in.1.3(0.0512)Output voltageHigh1.4Low0.7 ...

    Input Speed Sensor Repair procedures
    Inspection 1. Check signal waveform of Input speed sensor using the GDS. Specification: Refer to "Signal Wave Form" section. ...
